ZCQ is a leading distributor of SOLIS products, including the Opaque Quartz Plates, Precision Tubes, Rods & Rollers. To find out more how you can benefit by buying from ZCQ please contact us directly.

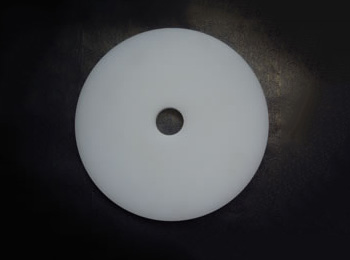

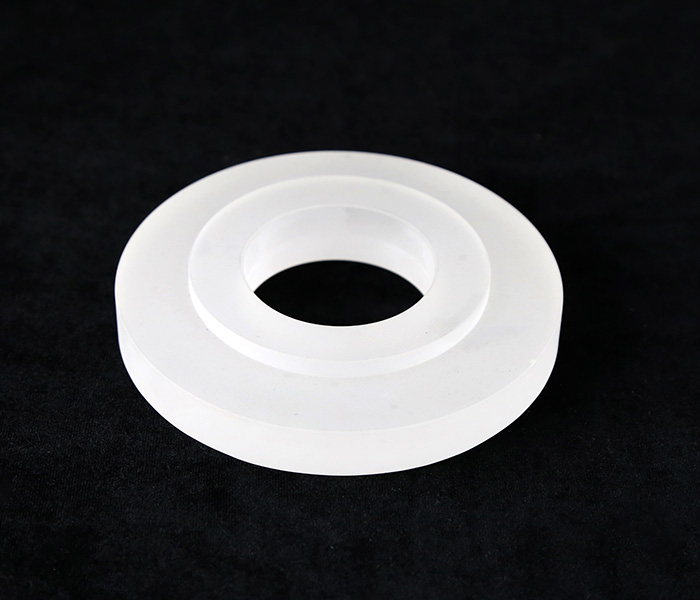

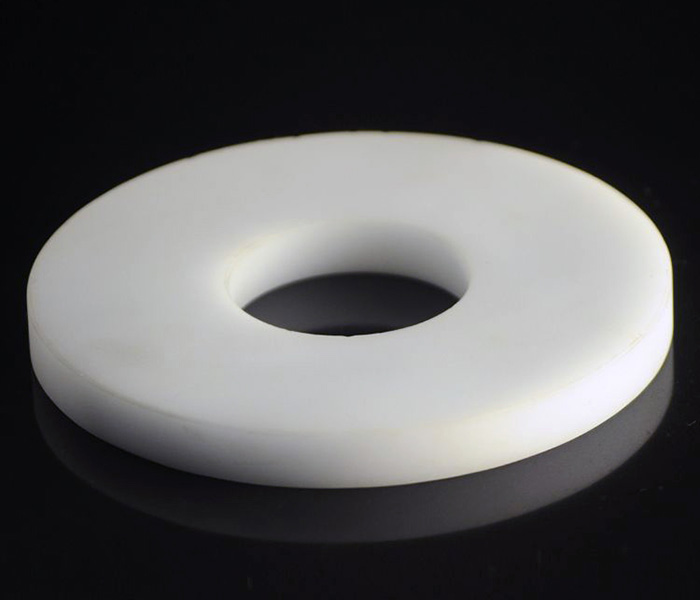

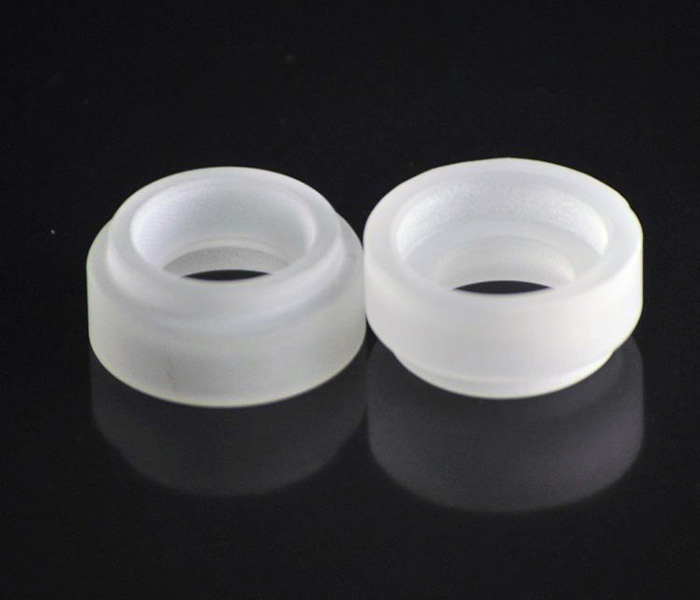

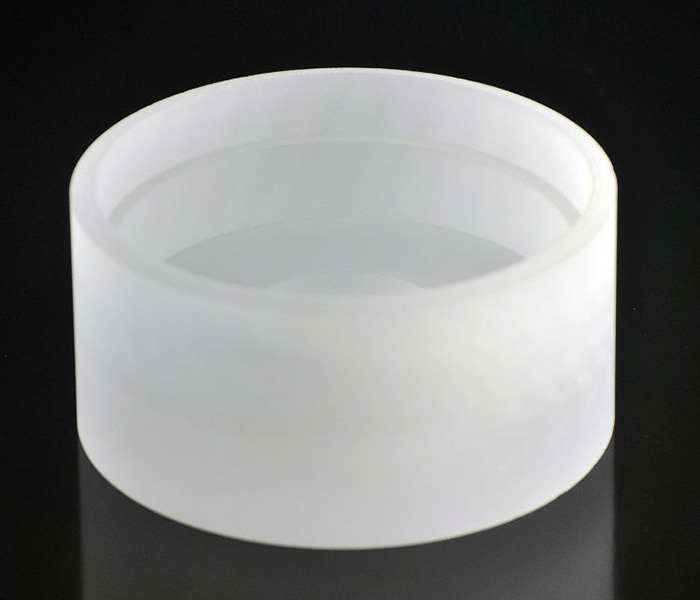

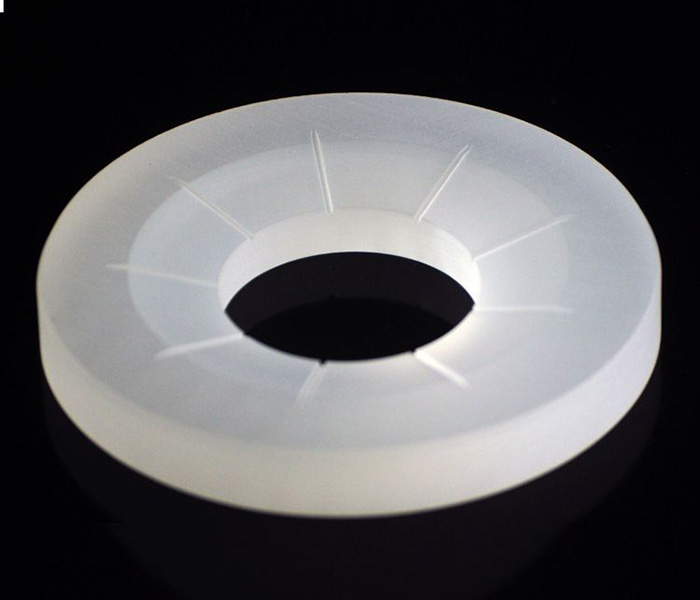

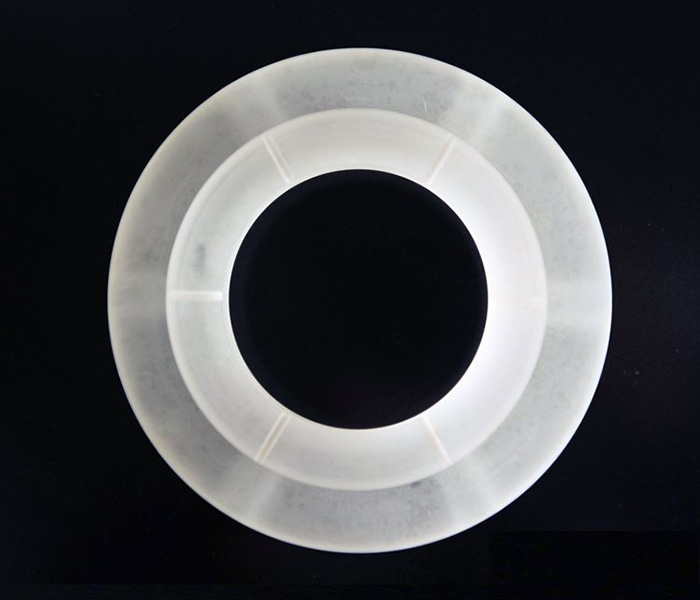

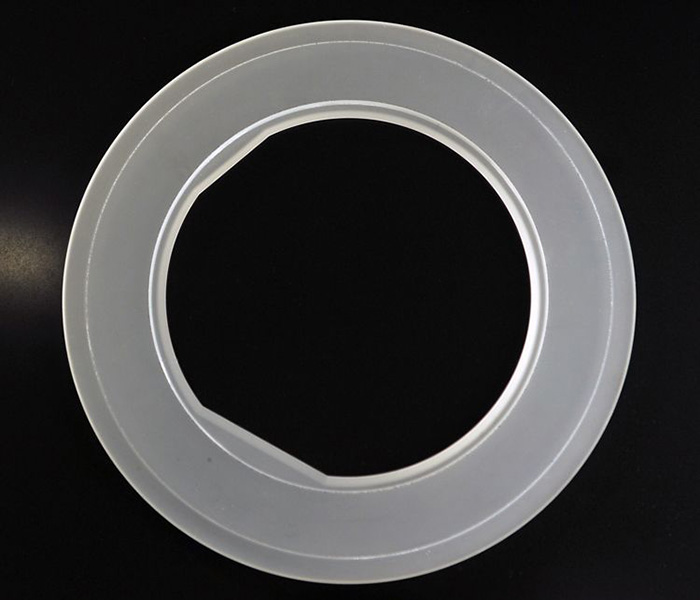

The opaque quartz plate and parts are ideal products in chemical industry, electronic field and other applications due to its high quality, good properties, strong resistance to chemicals, etc.Opaque Quartz Ring
ZCQ is an experience opaque quartz rings manufacturer.
With the good features including low hydroxyl content, high temperature resistance, high purity, good stability of dimension tolerance control and nice appearance, our opaque quartz plates and parts are widely used in many fields like polysilicon growth, semiconductor, metallurgy, chemicals, electric light source, photo-communication, medical equipment, scientific instruments and so on.

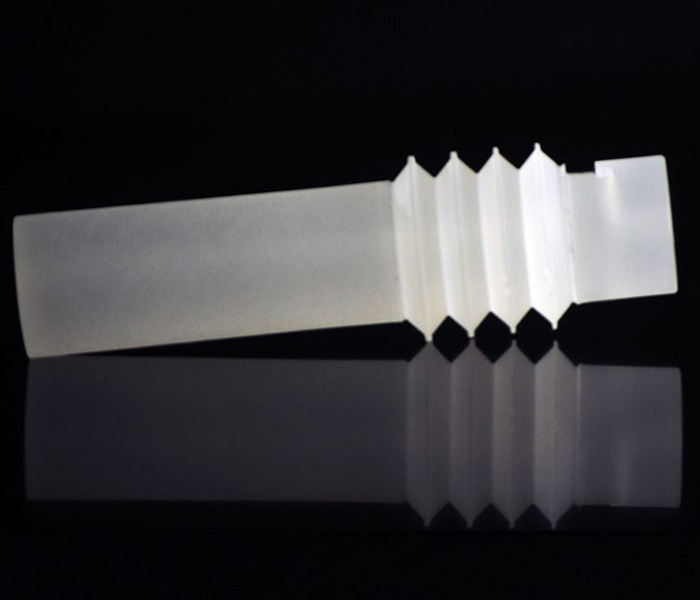

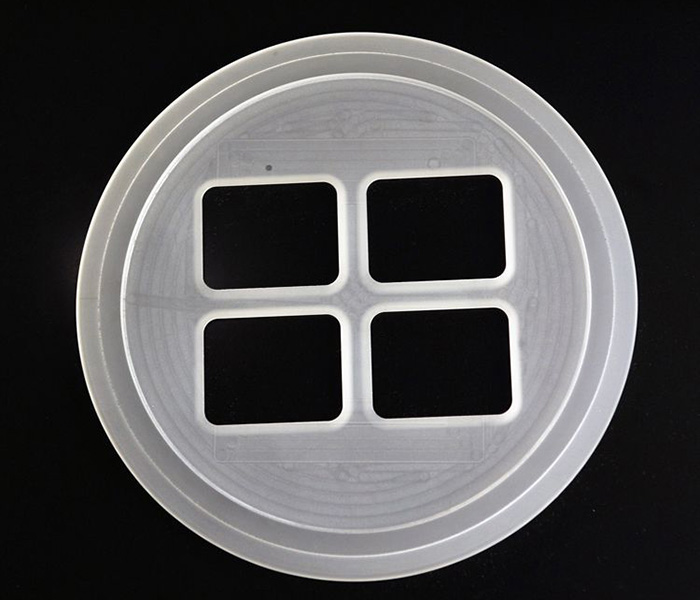

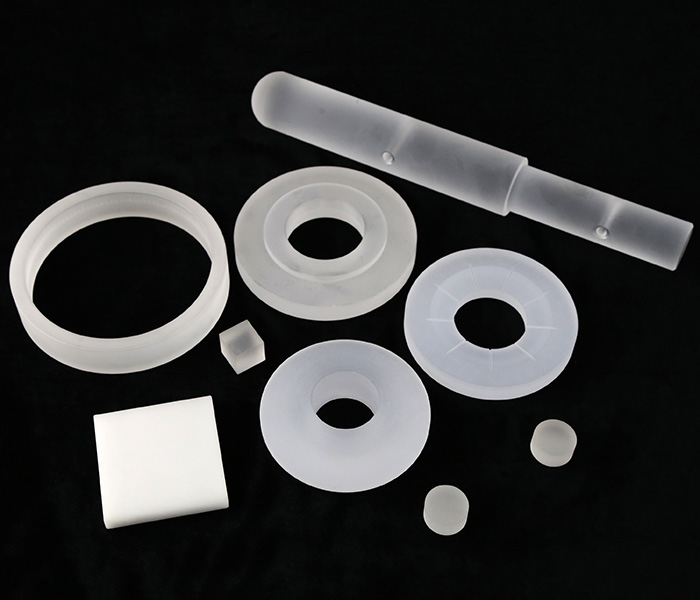

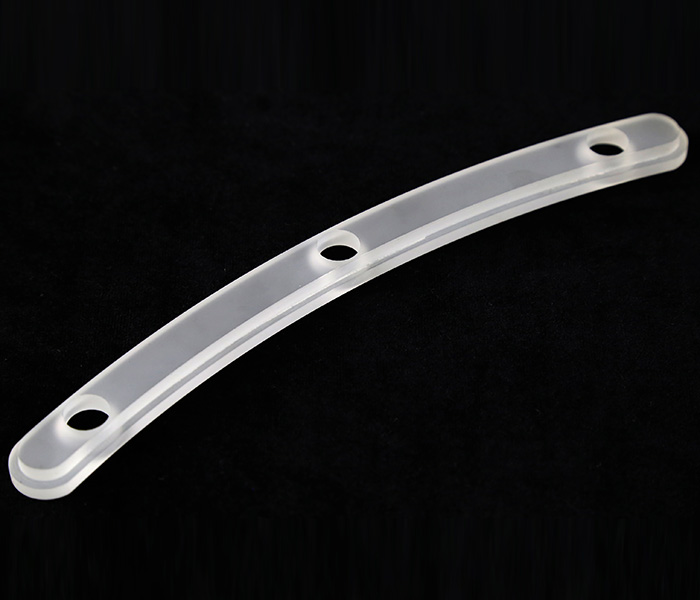

As well, their sizes can be ordered according to customer requirements. Opaque Quartz CNC Parts With the help of CNC design and software control, we are able to fabricate the high precision parts especially when doing arc, slope, slots, sphere, hole and angle processing according to customer's own design.Characteristics

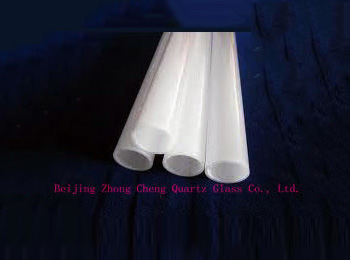

The opaque quartz tube enjoys typical characteristics of good visual aspects and stable physical and chemical properties due to the distinctive techniques. It serves as material of infrared heating lamps for heaters, microwave oven, sterilization container and other infrared applications of both consumer and industries. Further processing of trim cutting can be done according to the customers' demands.Physical Properties
Opalescence: Spectral transmission: ≤500nm
SiO2: The purity of SiO2 is more than 99.9%
Thermo-stability: Kept at 900℃ for 15 minutes and then put into 20℃ water 3 times, the opaque quartz won't crack.

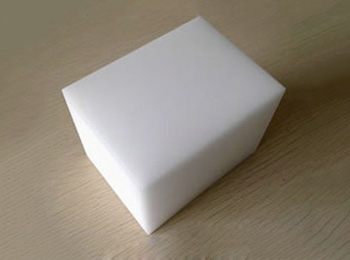

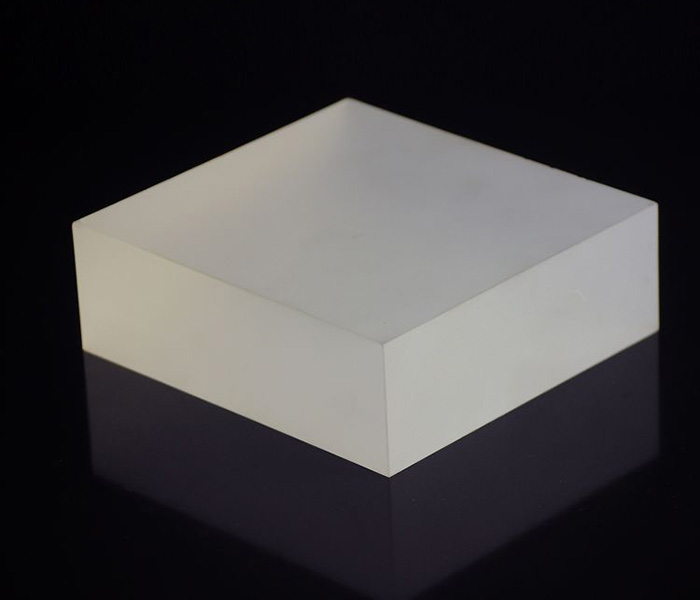

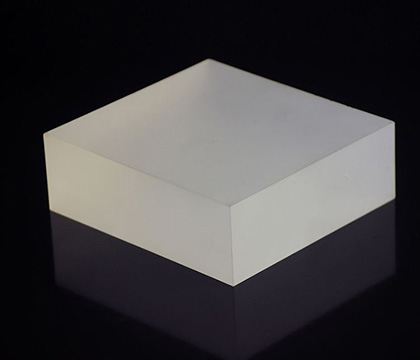

The opaque quartz block is widely used in metallurgy, chemical industry, building material and many other fields. With large number of little bubbles inside, the block appears opaque instead of transparent. The small bubbles result in rays scattering. Within the bubbles, there are 60% of CO, 10% of CO2, 8% of O2 and 22% of N2. The bubbles are good for the glass in heat isolation, thermal stability, infrared absorption and radiation resistance.

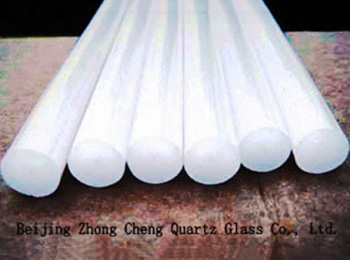

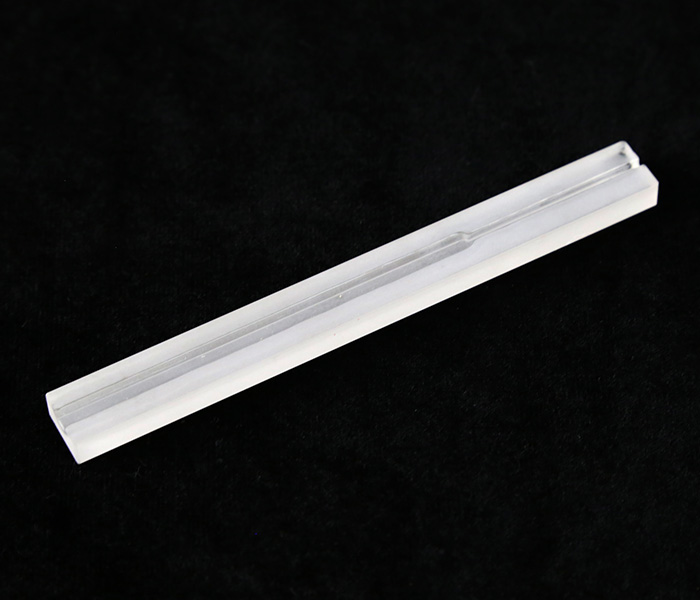

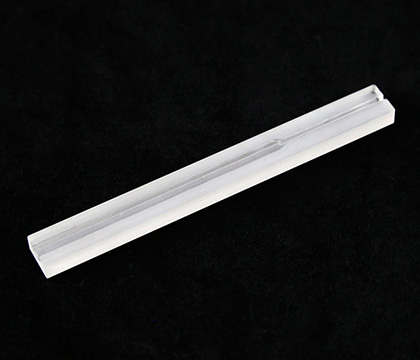

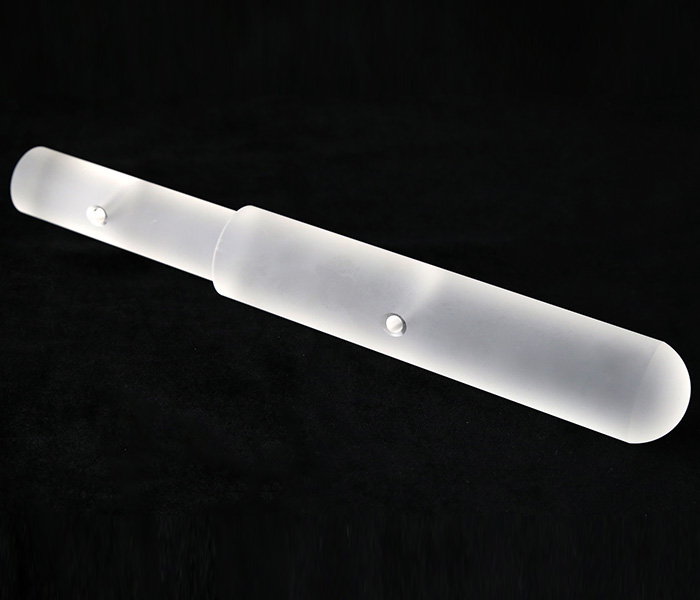

Opaque quartz rod is widely used in electronics, semiconductor field and other applications due to their high quality and excellent properties. It is made of high-purity quartz sand. It was pulled out from high temperature melting furnace using world advanced technology and equipment. After testing and improving, the outer surface and inner quality of the products meet international standard. The surface is smooth and the color is pearl-white. The purity of SiO2 is promised to be more than 99.95%. The opaque quartz rod is designed with excellent properties including high purity, abrasion resistance (except hydrofluoric acid & hot phosphoric acid), fire resistance (melting point is 1650 centigrade), low coefficient of thermal expansion (5.5×10-7/centigrade) and excellent electrical property. In addition, higher purity compositions for semiconductor applications are available upon request.
