High Pure Micro Capillary Quartz Tubes & Rods (or Quartz/ Glass Capillary Tubes & Rods)with its optical, physical, mechanical, electrical, and other outstanding features, are essential component and required material of the Gas Chromatographs, High Performance Capillary Electrophoresis Chromatograph (HPCE), High Performance Liquid Chromatograph (HPLC) and Microfluidics instruments in Electronic, Medical Treatment, Chemical and Optical industry.
Besides, it can be widely used in optical fiber and communication industry such as Optical Connectors, Opitcal Fiber Splices, Fiber Supports, CATV system(which require high return-loss properties), PLC Splitter, Wavelength Division Multiplexer (WDM), Optical Fiber Collimator, Fiber Optic Sensor (FOS), Optical Fiber Communication Systems and other optical fiber transmission facilities.
There is no any other material can be equivalence of the quartz capillary tubing in the accuracy veracity and consistency of its inner diameter in the different production batches and different lengths.
With the miniaturization of the cutting-edge technology development, quartz capillary tubes & rods will play an increasingly important role in various fields.
High Dimension Precision
Excellent Polishing Properties
High UV-Light Transmittance
High Chemical Durability
High Environmental Durability
What ZCQ Do
According to the different designs and purposes of the applications, ZCQ provides customers with different high-pure high precision quartz capillary tubes and capillary quartz rods.
General Specifications & Tolerance of ZCQ's Quartz Capillaries Tubing and Rods
Outer Diameters: 0.5mm to 8mm
Inner Diameters: 0.09mm～Specified D
Lengths: 1mm to specified L
OD & ID Tolerance: To 1.5%-3%mm
Material: Quartz Glass, Fused Silica, Borosilicate Glass, Opaque Quartz
Based on applications, ZCQ's Quartz/Fused Silica Capillary Tubes & Rods can be classified to the following types

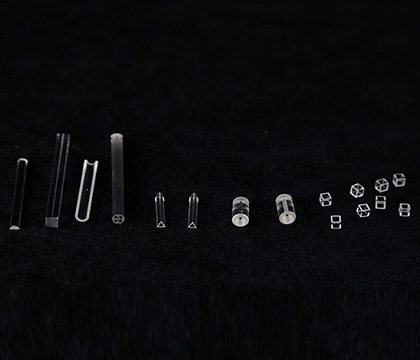

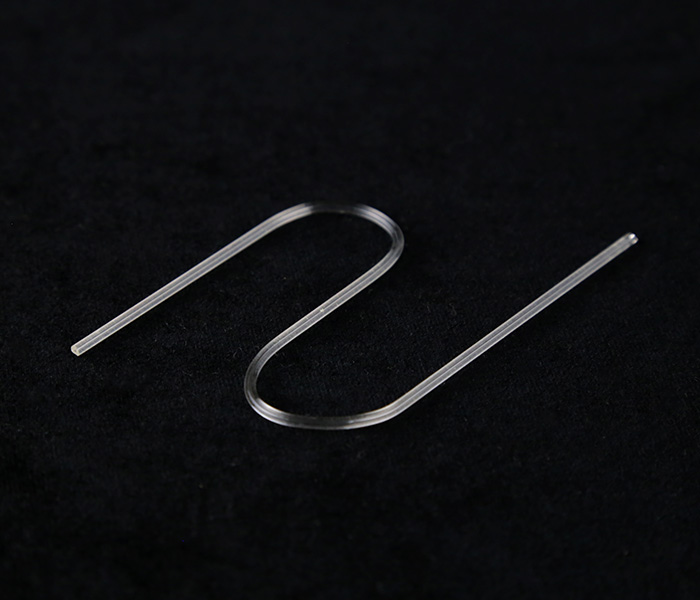

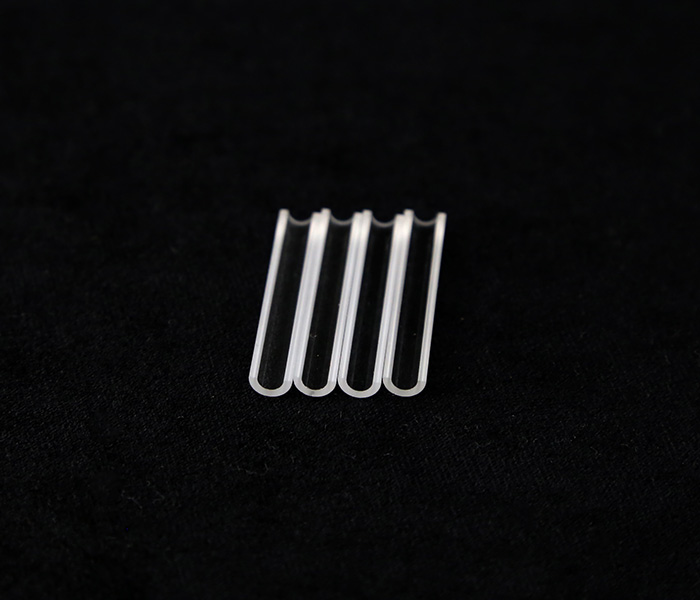

Standard Quartz Capillary Tube, Nozzle End Micro Capillary, Quartz Capillary D-Shape Tube, V-Shape Tube, U-Shape Tube, Square-Shape Tube, Quartz Glass Capillary Connector of the Pigtail Series, Quartz Glass Capillary Bar and so on.

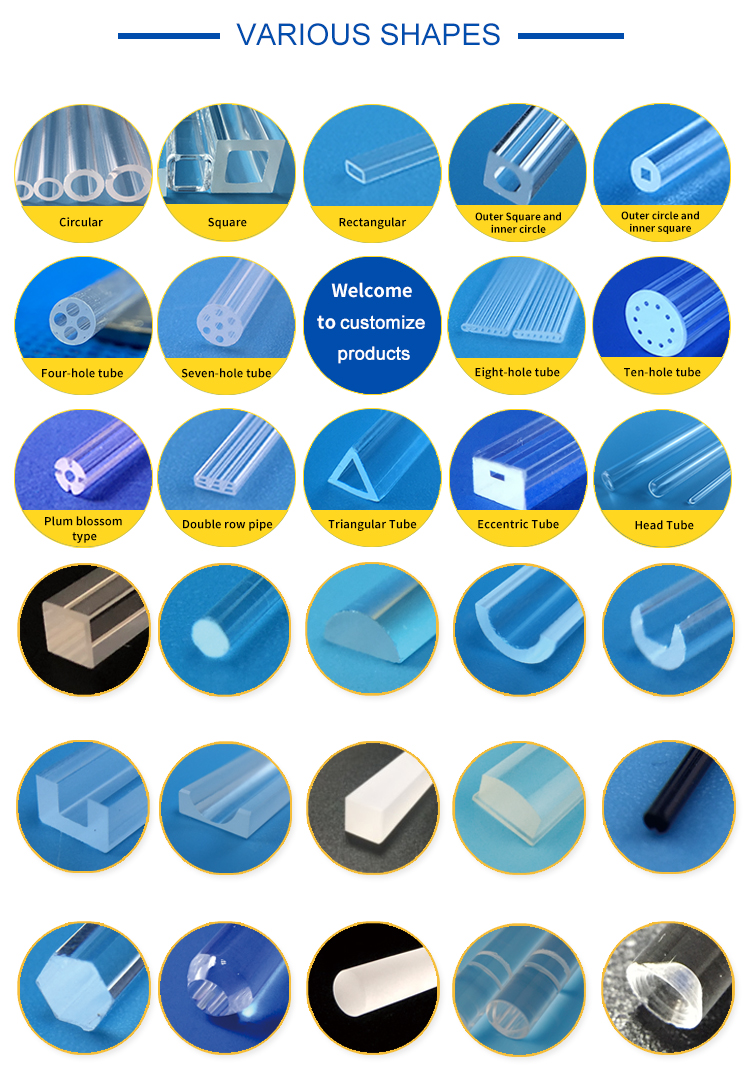

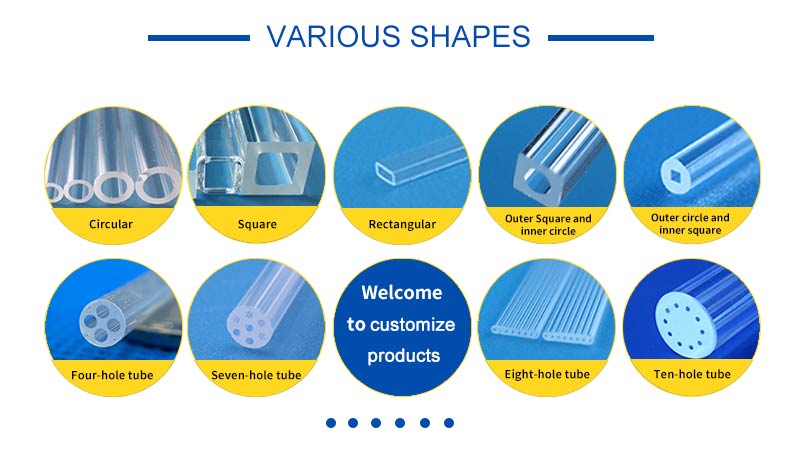

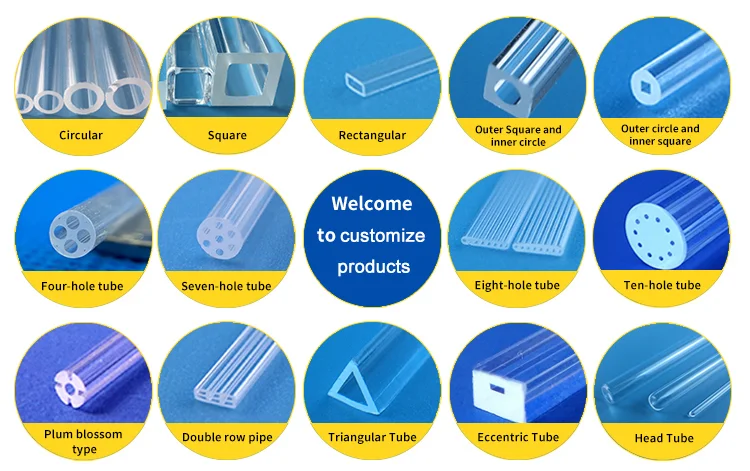

Based on the different outer shape and inner shape, ZCQ's Quartz Capillary Tubes can also be generally classified as below

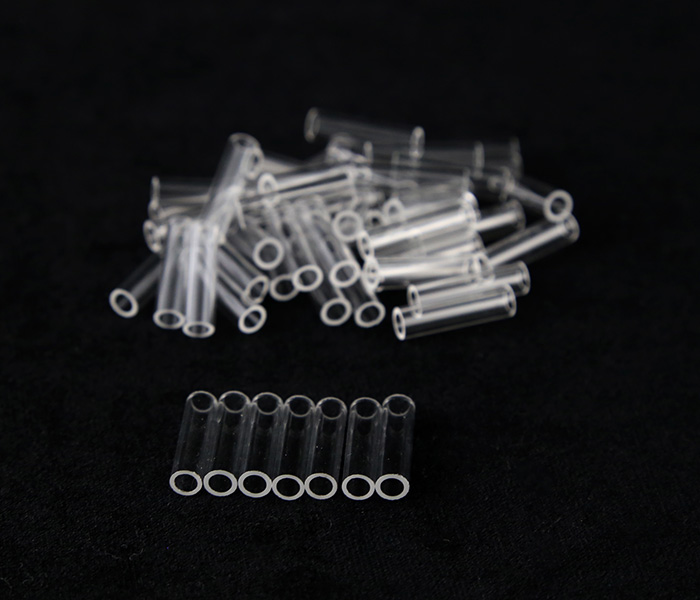

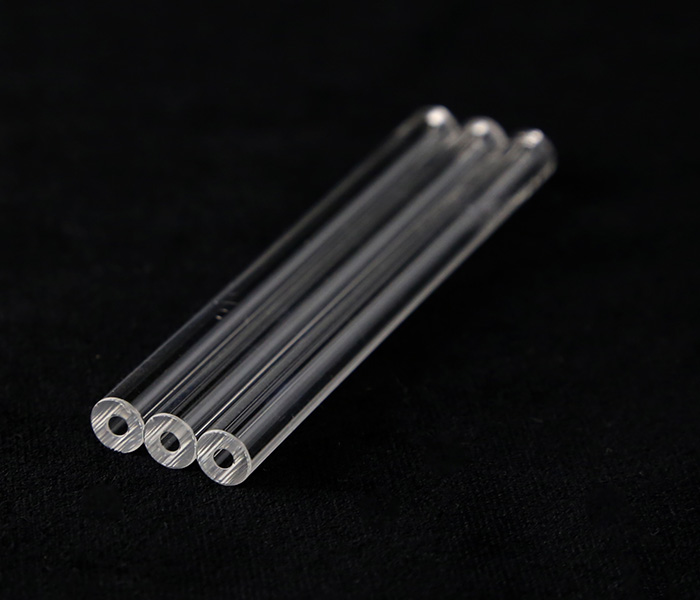

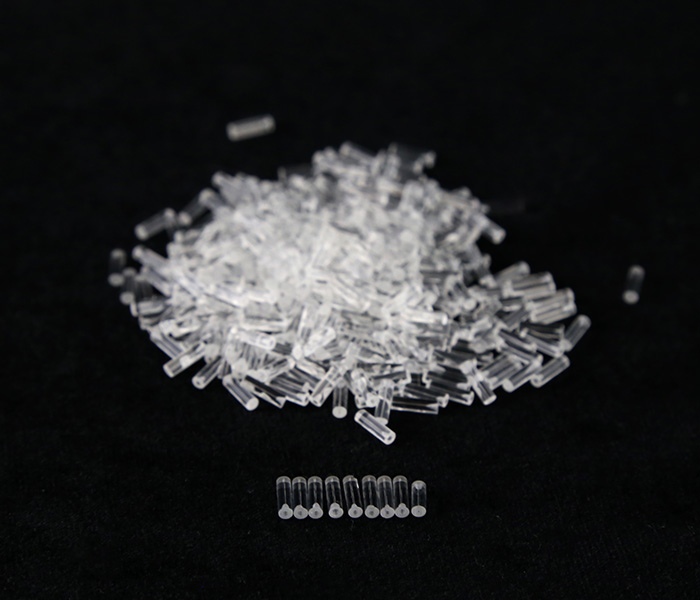

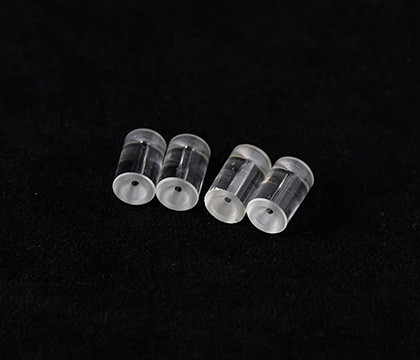

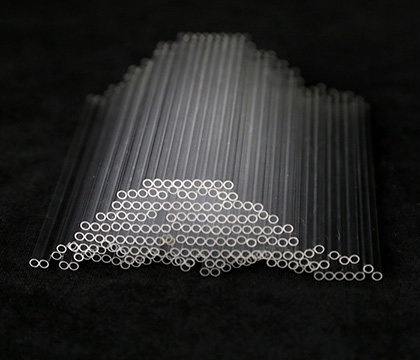

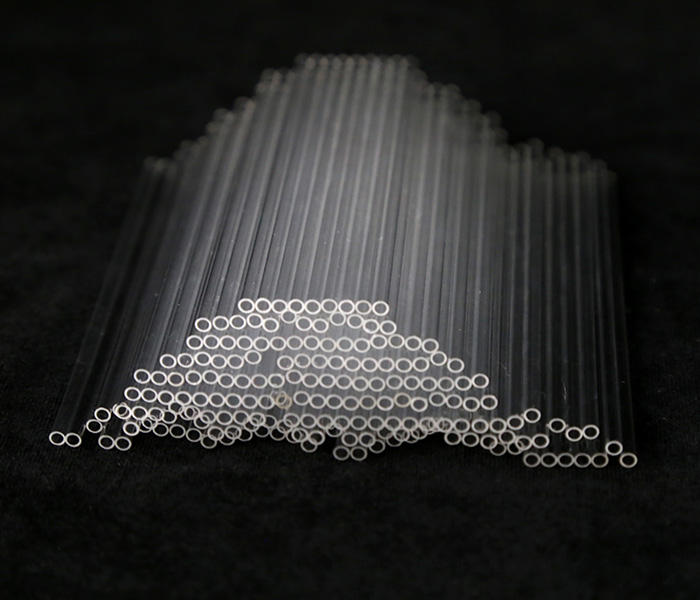

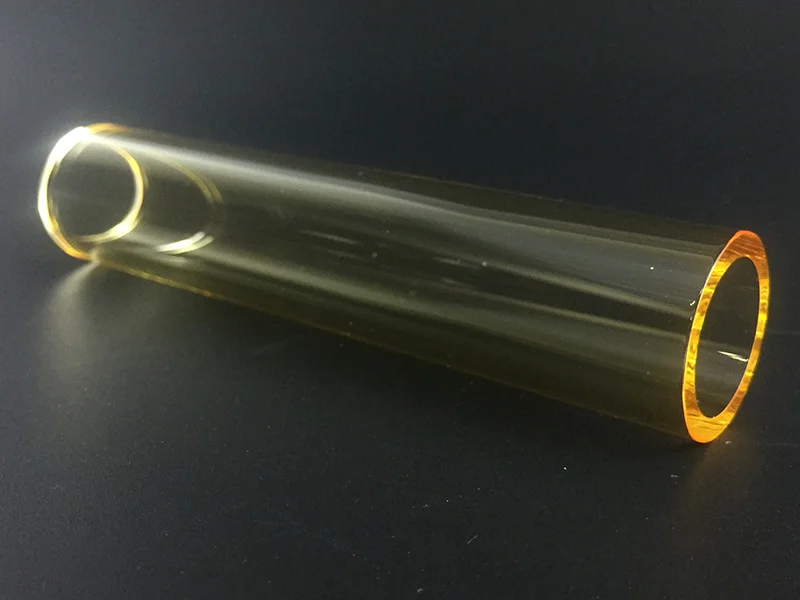

Standard Open End Capillary Quartz Tube

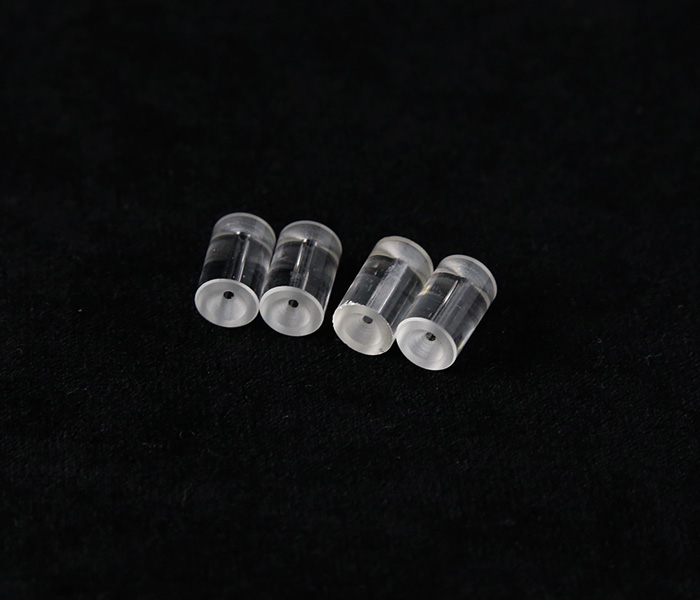

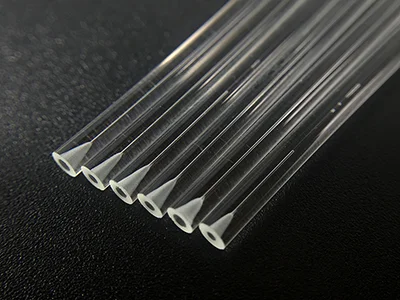

Cone End Shape Quartz Tube
Cone Shape Quartz Tube
D Shape Quartz Tube

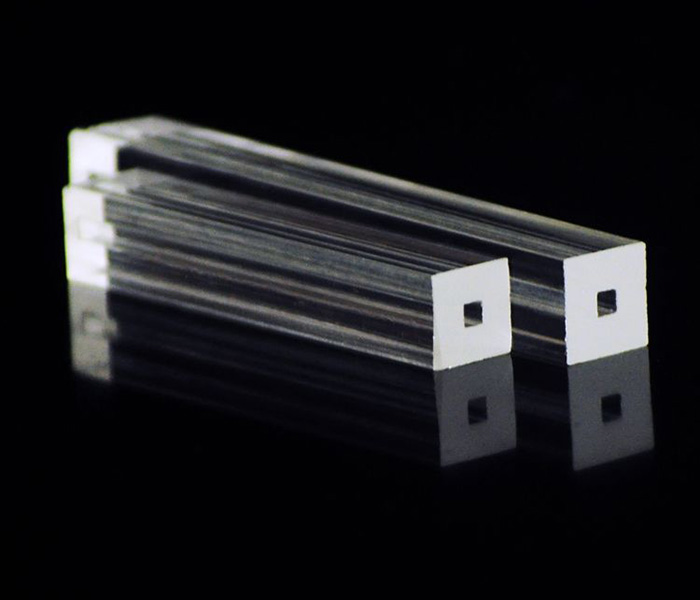

Outer-square Type Quartz Capillaries
Outer-circle Square-hole Type Quartz Capillaries
Outer-Hexagon Shape Quartz Capillaries
Dual-hole Shape Quartz Tube

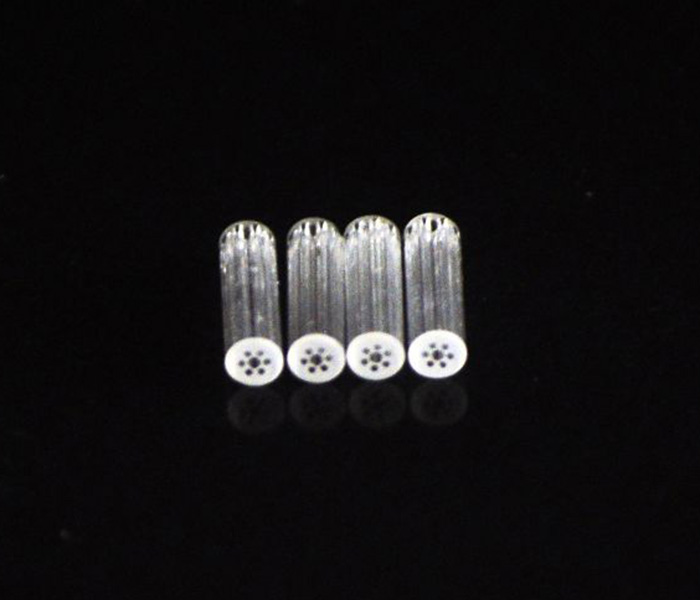

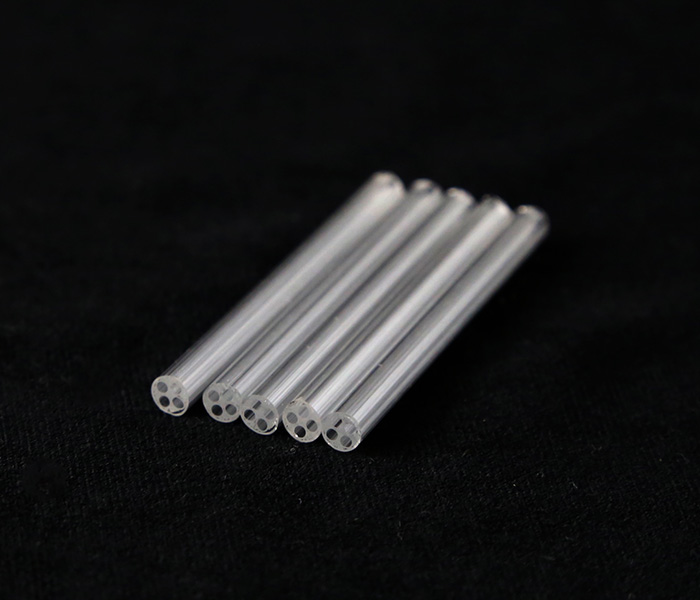

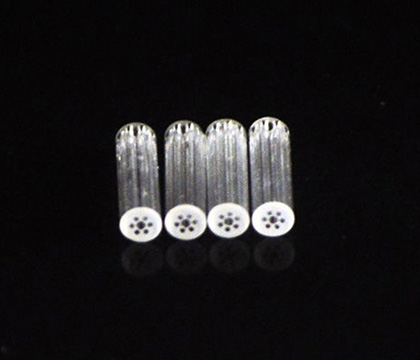

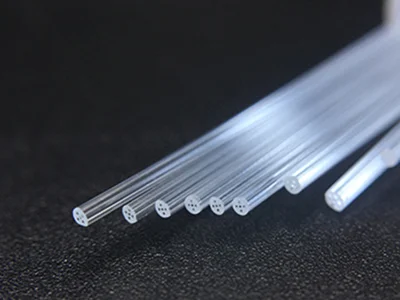

Inter Multi-hole Capillary Quartz Tube (from Inter Single-hole to Multi-holes Type)
Oval Shape Quartz Tube

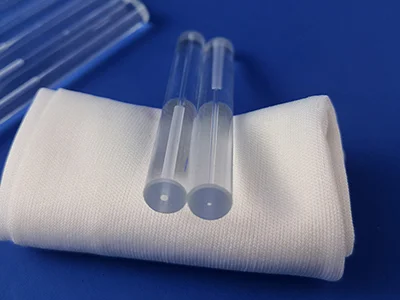

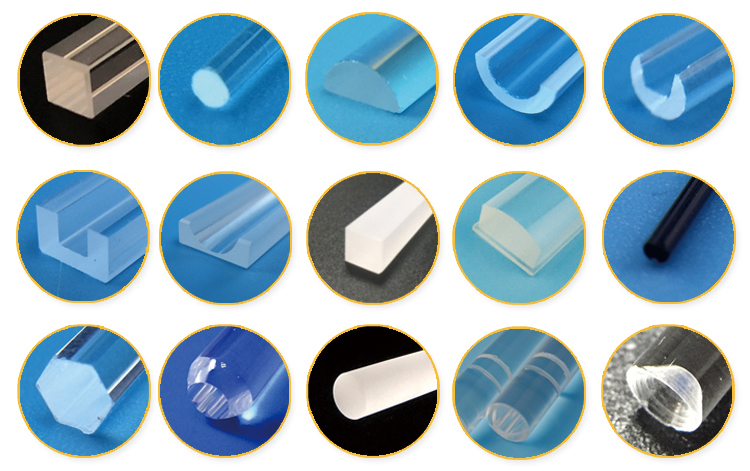

For precision capillary/Micro Quartz Rods or Quartz Bars, we can supply

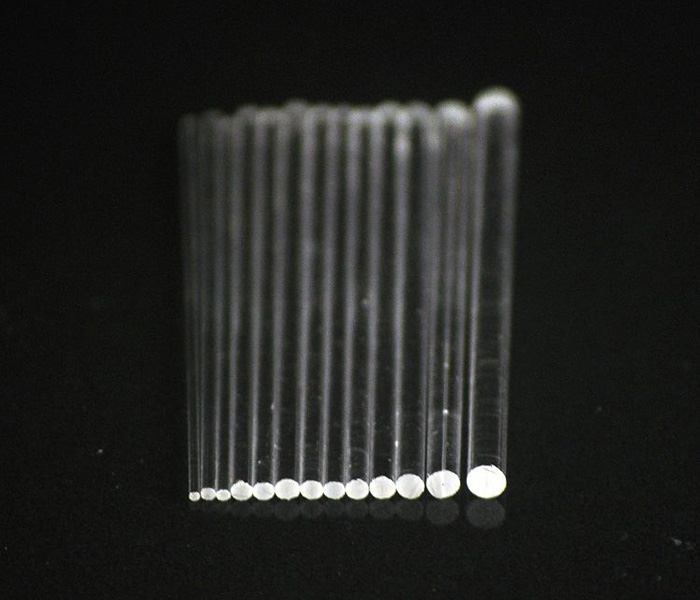

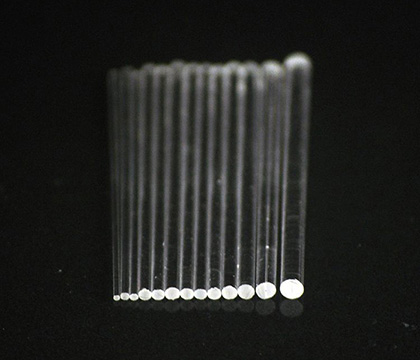

Standard Capillary Quartz Rod

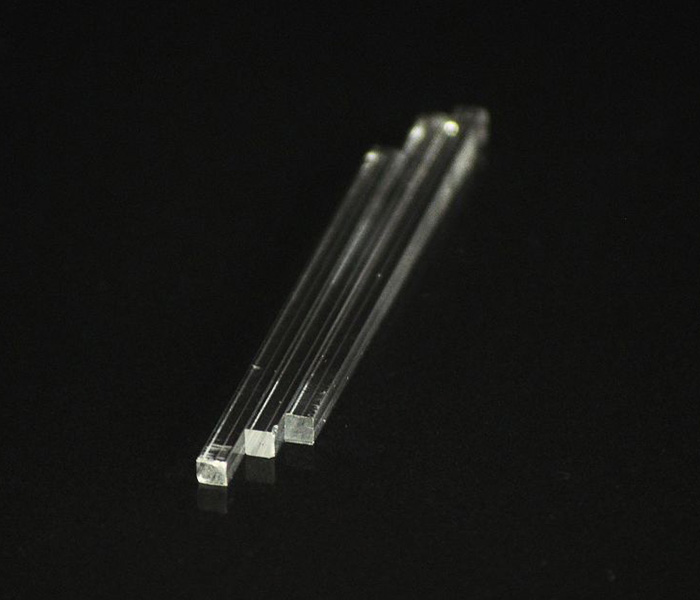

Square Quartz Rod
Cone Shape Quartz Rod
Hexagonal Shape Quartz Rod
Oval Shape Quartz Rod

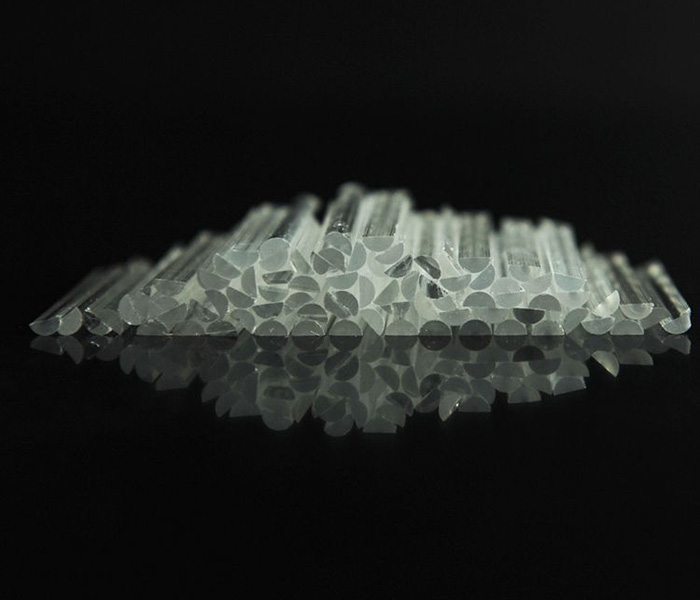

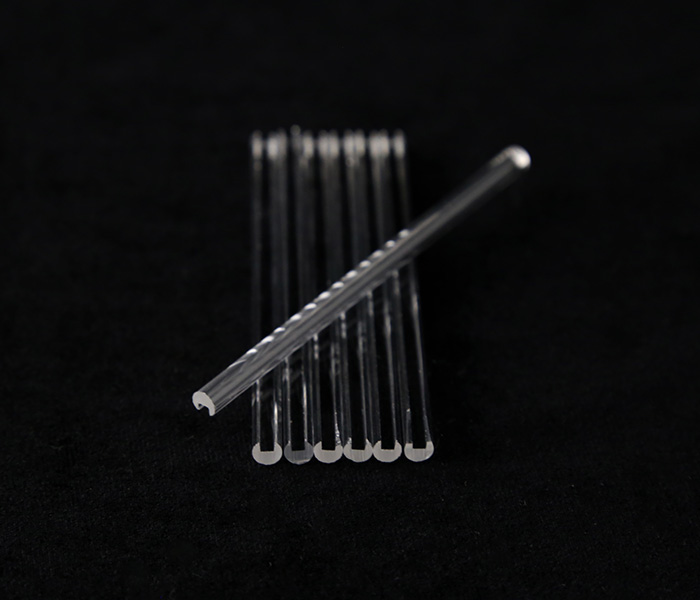

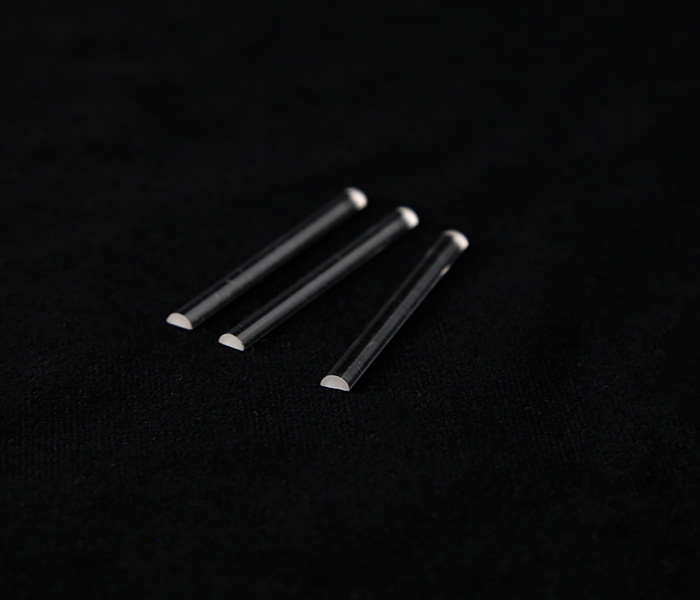

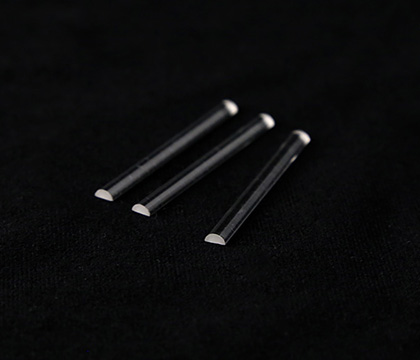

D-shape Quartz Rod
Customer-designed and tailor-made dimensions with specified tolerances & shapes of Quartz Capillaries Tubing and Rods are well welcomed to inquiry!
|Quartz Capillary Tubes (Stock List)|
|Outside Diameter (mm)||Inner Diameter (mm)||Outside Diameter (mm)||Inner Diameter (mm)|
|Square Quartz Rods (Stock List)|

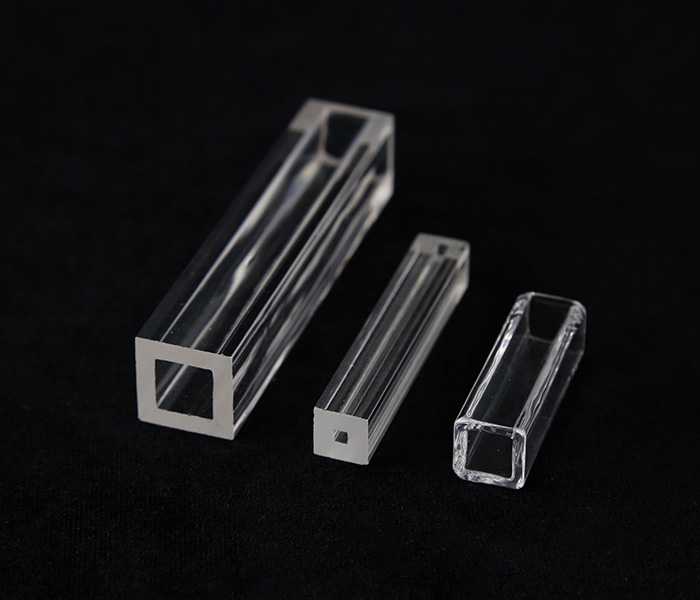

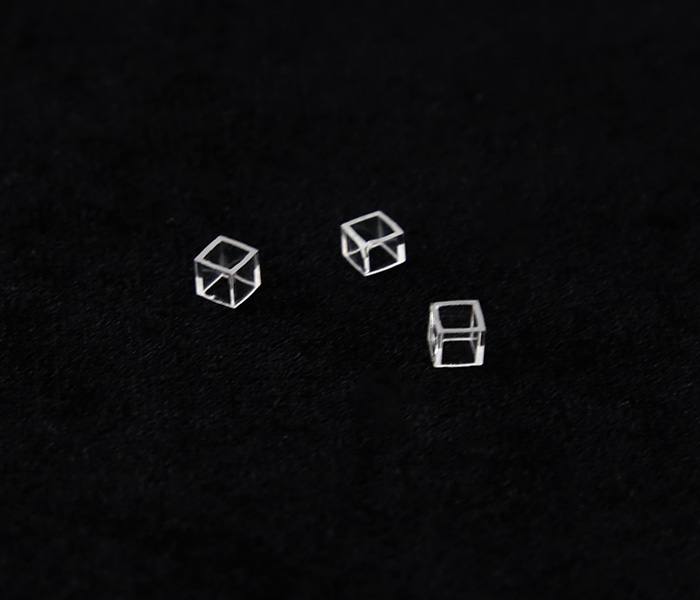

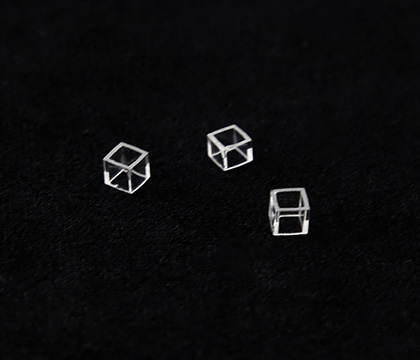

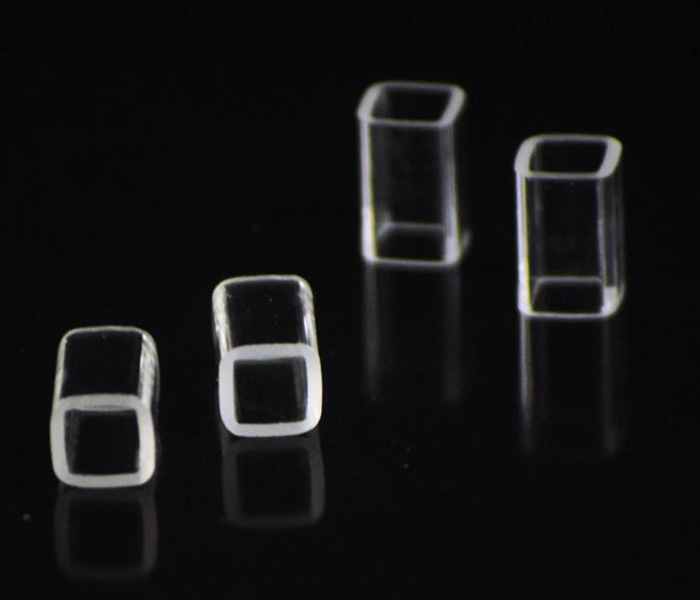

|Square Quartz Tubes (Stock List)|
|Outside L×W(mm)||Inner L×W/ Diameter (mm)|
|2.5×2.5||Φ0.125 (Eccentric Tube)|
|2.5×2.5||Φ0.25 (Eccentric Tube)|
|Capillary Quartz Rod (Stock List)|
|Outside Diameter (mm)|
ZCQ Strong Points
As a high-tech enterprise with enduring efforts, ZCQ accumulates great manufacturing experience of quartz glass products for more than 15 years, which enable us reliable product quality and innovation ability.
We insist on the efforts of administration of obtained ISO 9001: 2008 quality system certification and RoHS certification, and also gained widespread recognition and customer recognition based on reliable quality, mass production and competitive prices.

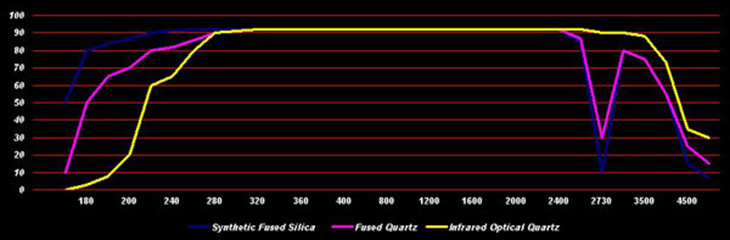

We welcome domestic & overseas clients to inquiry our wide range products and hope to build up a long-term cooperation with you.Transmittance of Quartz
Besides Quartz material we can also supply Borosilicate Glass material. Welcome to send any of your interest to us and order now!
